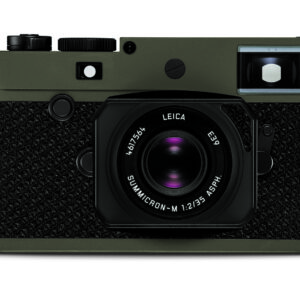

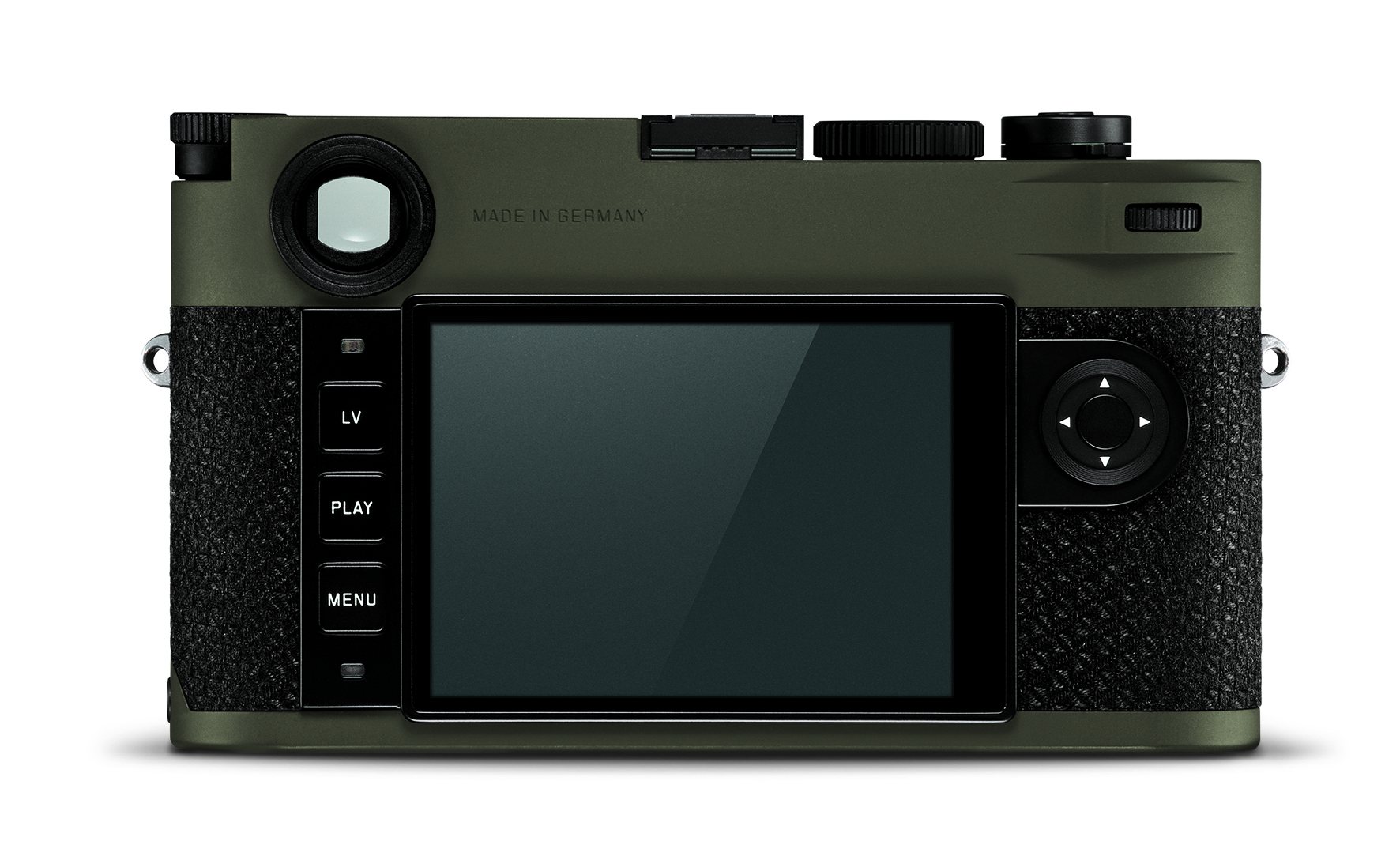

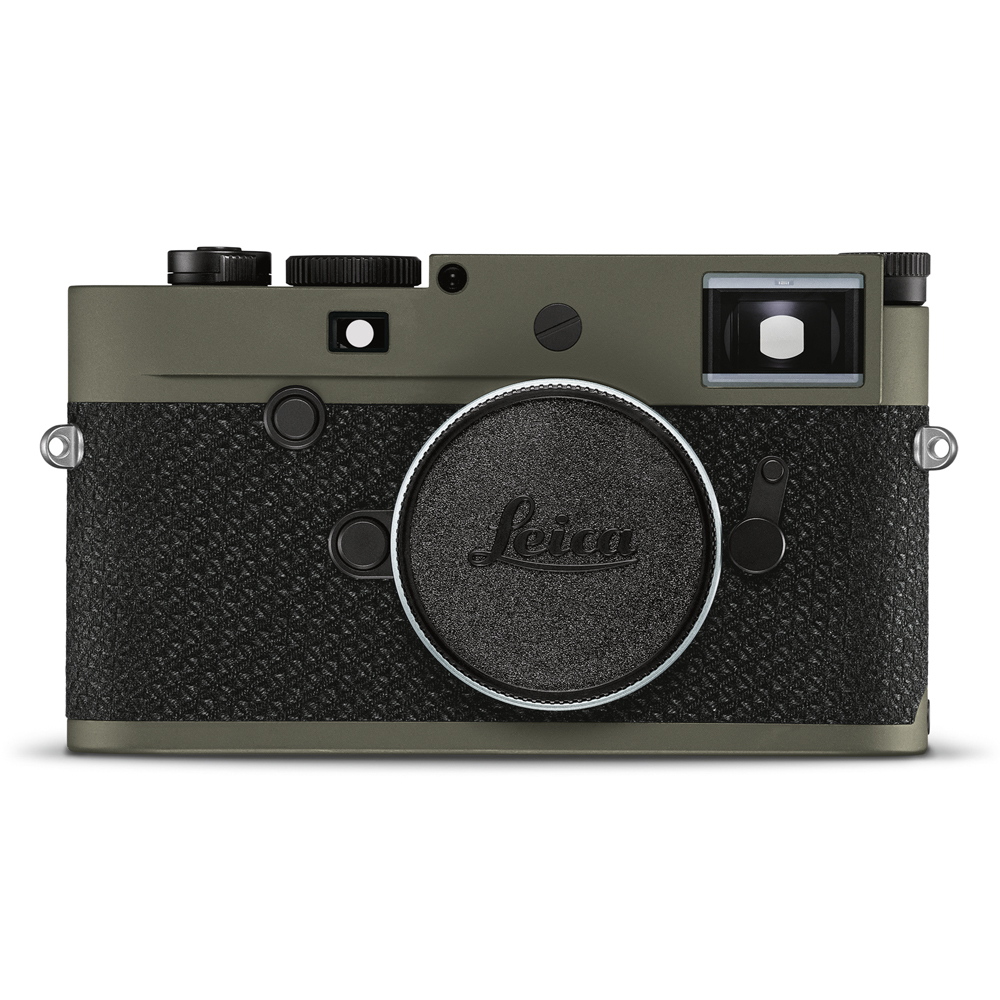

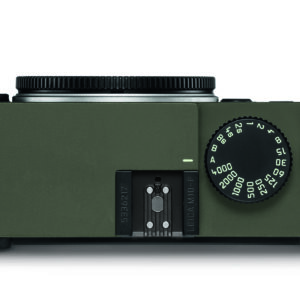

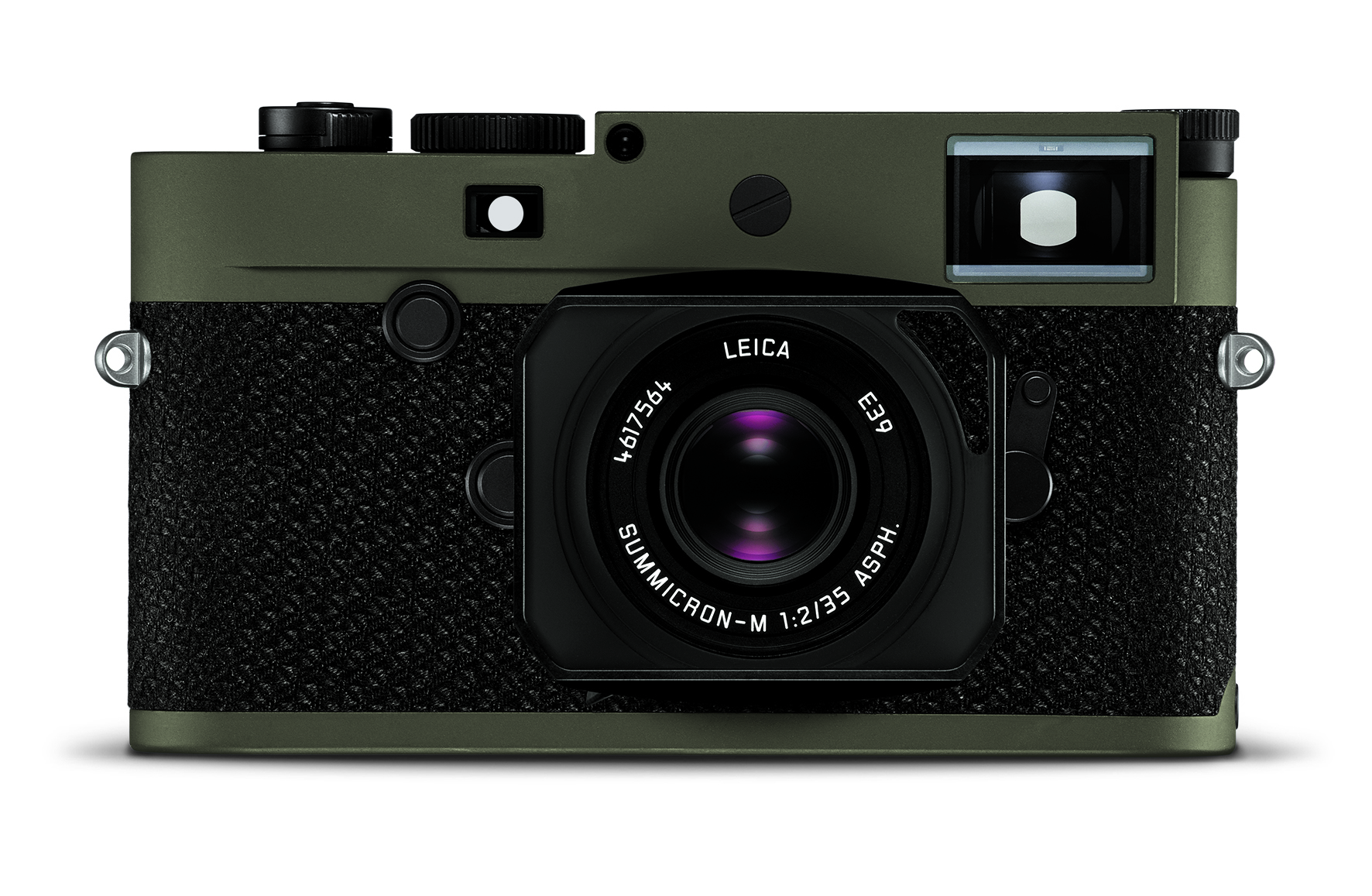

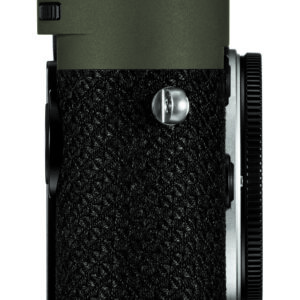

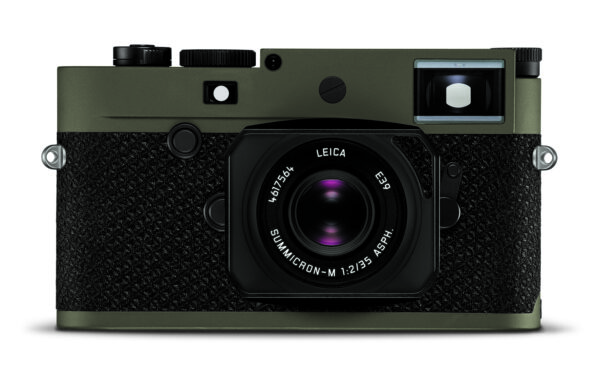

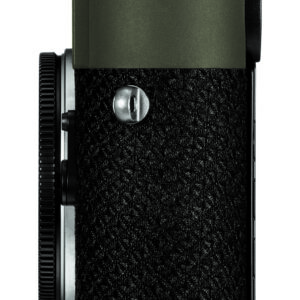

Leica M10-P “Reporter”: A homage to the great reportage photographers of our time

Wetzlar, January 21, 2021. As part of the celebrations marking the 40th anniversary of the Leica Oskar Barnack Award, Leica Camera AG presents a special design variant of the Leica M10-P: the M10-P “Reporter” is an uncompromising reportage camera, suitable for even the most challenging conditions. Many Leica cameras throughout the company’s history have been developed with the needs of press and reportage photographers in mind. This is illustrated by exceptional models such as the Leica 250 of 1933, whose film cassette accommodated 250 exposures, or the Leica MP of 1956 – a Leica M3 variant which was equipped with the Leicavit rapid winder, following the suggestions of renowned photographers Alfred Eisenstaedt (1898–1995) and David Douglas Duncan (1916–2018).

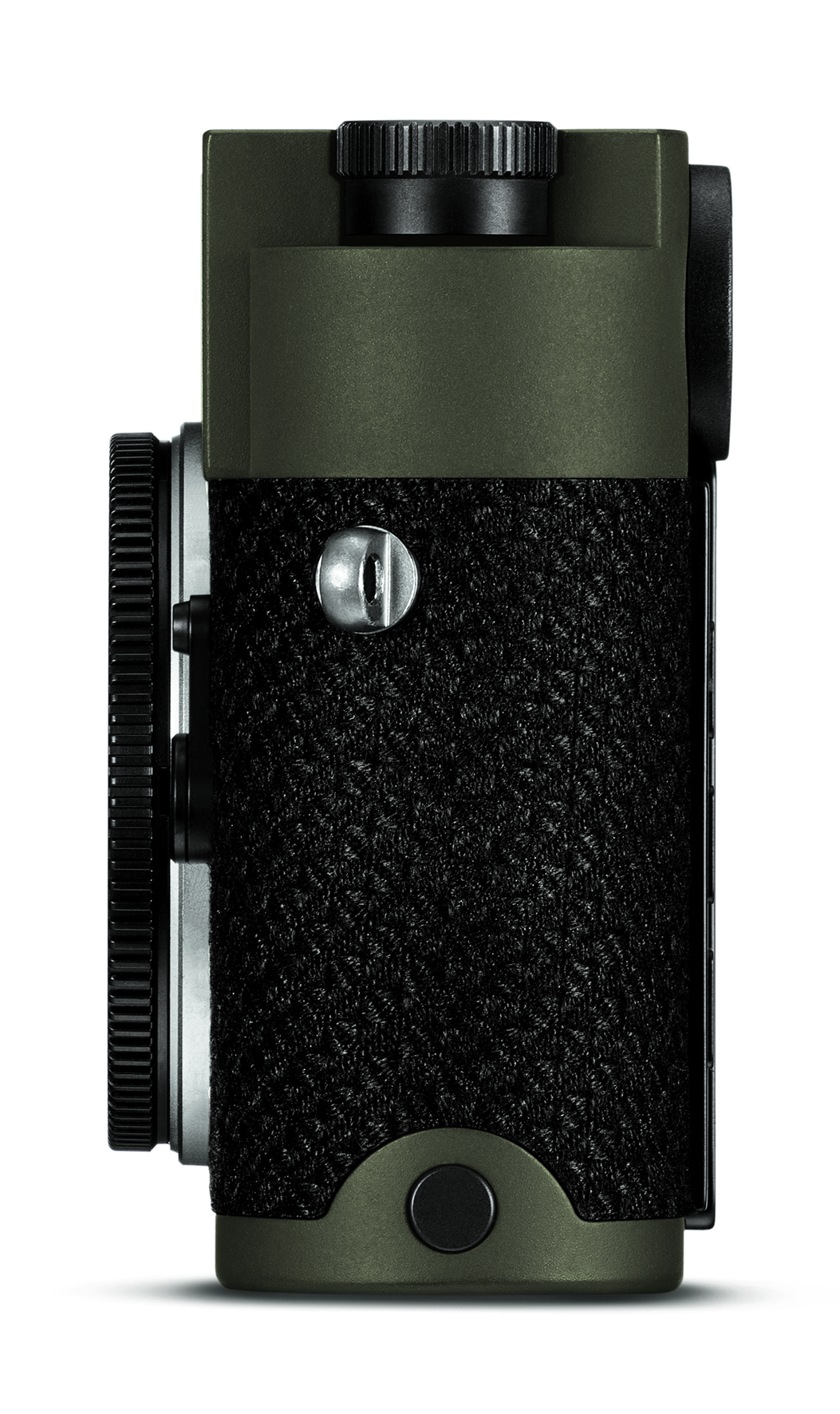

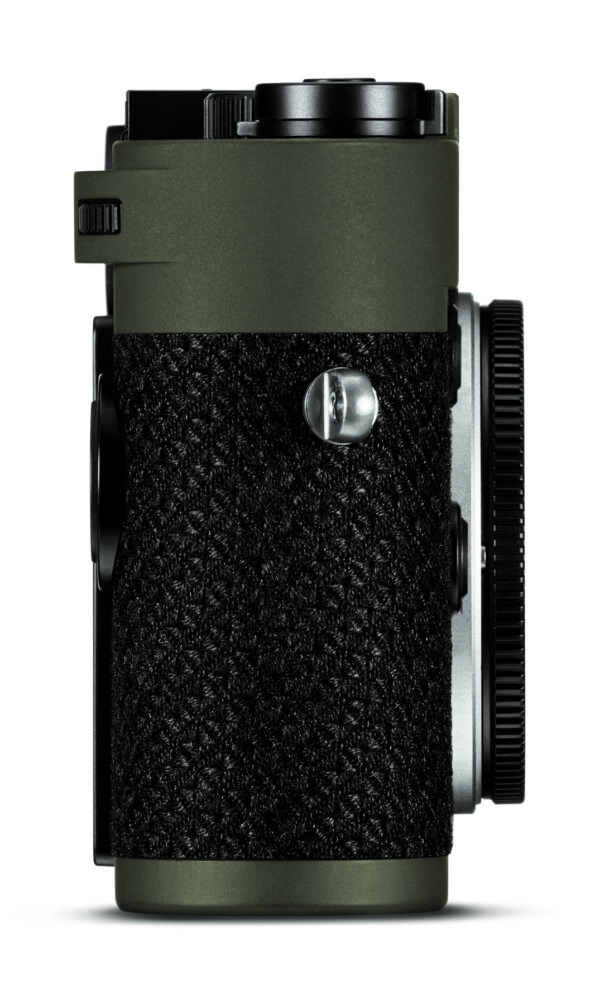

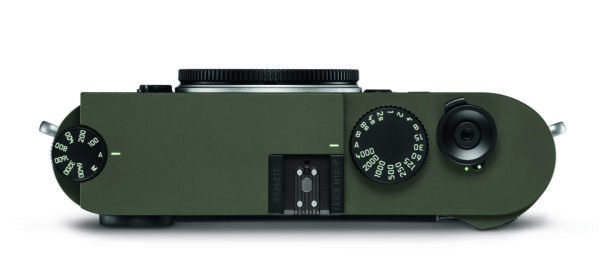

With its dark green, particularly scratch-resistant finish camera trim, the Leica M10-P “Reporter” brings to mind the extremely challenging conditions under which many of the most remarkable reportages of our time were created. Aramid fiber frequently used in the production of ballistic protective clothing. Through exposure to natural UV rays, the camera’s body armor will gradually turn the same color as its top and base plate. The armor’s diamond-weave texture makes the Leica M10-P “Reporter” especially grippy and comfortable to hold. All of the camera’s engravings are inlaid in light green, resulting in a more discreet effect than the white inlays customarily used on black-finish cameras. In terms of its technical specifications, the M10-P “Reporter” is identical to the serially produced Leica M10-P.

Weight3.5 kg
Dimensions30 × 28 × 20 cm

Technical Data

Camera:Leica M10 Monochrom
Type no.6376
Order no.20050
Camera TypeCompact digital view and rangefinder system camera with a dedicated black-and-white image sensor
Lens AttachmentLeica M bayonet with additional sensor for 6-bit coding
Lens systemLeica M lenses, Leica R lenses with an optional adapter (available accessory)
SensorB/W CMOS chip, active area approx. 24×36 mm, without color and low-pass filter
ResolutionDNG™: 7864 x 5200 pixels (40,89 MP),
JPEG: 7840 x 5184 pixels (40,64 MP), 5472 x 3648 pixels (20 MP), 2976 x 1984 pixels (6MP)
Data formatsDNG™ (raw data, compressed loss-free), JPEG
File sizeDNG™: 40-60 MB, JPEG (40MP)10-20 MB: Depending on resolution and picture content
Buffer memory2GB / 10 pictures in series
White balanceAutomatic, manual, 8 presets, colour temperature input
Storage mediaSD cards up to 2GB/SDHC cards up to 32GB/SDXC cards up to 2TB
Menu languagesGerman, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Exposure meteringExposure metering through the lens (TTL), with working aperture
Metering methodLight reflected by the blades of the 1 shutter curtain onto measuring cell
Metering rangeAt room temperature and normal humidity for ISO 200, at aperture 1.0 EV-2 to EV19 at aperture 32. Flashing of the left
triangular LED in the viewfinder indicates values below the metering range
Sensitivity rangeISO 160 to ISO 100.000, adjustable in 1/3 ISO increments from ISO 160, choice of automatic control or manual setting
Exposure modesChoice of automatic shutter speed control with manual aperture preselection – aperture priority A, or manual shutter
speed and aperture setting
Flash exposure
control
Flash unit attachmentVia accessory shoe with central and control contacts
SynchronizationOptionally triggered at the 1st or 2nd shutter curtain
Flash sync time= 1/180 s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash
mode with HSS-compatible Leica system flash units
Flash exposure metering Using center-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter
Flash measurement cell 2 silicon photodiodes with a collection lens on the camera base
Flash exposure compensation±3EV in1⁄3EV increments
Displays in flash mode
(in viewfinder only)
Using flash symbol LED
Viewfinder
Construction principle  Large, bright-line frame viewfinder with automatic parallax compensation
EyepieceCalibrated to -0.5 dpt.; corrective lenses from -3 to +3 diopter available
Image field limiter By activating two bright lines each: For 35 and 135mm, or for 28 and 90mm, or for 50 and 75mm; automatic switching
when lens is attached.
Parallax compensation The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the
relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.
Matching viewfinder
and actual image
At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at
infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than
indicated by the corresponding bright-line frame and slightly less for shorter distance settings than 2m
Magnification  (For all lenses) 0.73 x
Long-base rangefinderSplit or superimposed image range finder shown as a bright field in the centre of the viewfinder image
Effective
metering base
50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)
Displays
In the viewfinder  Four-digit digital display with exposure alerts above and below
On back On back 3″ colour TFT LCD monitor with 16 million colours and 1,036,800 pixels, approx. 100 % image field, glass cover of extremely hard, scratch-resistant Gorilla® glass, colour space: sRGB, for Live-View and review mode, displays
Shutter and
shutter release
Shutter Metal blade focal plane shutter with vertical movement
Shutter speedsFor aperture priority: (A) continuous from 16min to 1⁄4000s.,
for manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 16min in half steps, B: For long exposures up to maximum
16min (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter closes),
(1⁄180s): Fastest shutter speed for flash synchronization, HSS linear flash mode possible with all shutter speeds faster
than 1⁄180s (with HSS-compatible Leica system flash units)
Picture seriesApprox. 4.5 pictures/s
Shutter release button Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture
priority mode), 2nd step: Shutter release; standard thread for cable release integrated
Self-timerDelay optionally 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front
of camera and corresponding display in monitor.
Turning the camera
on/off
Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes;
reactivated by tapping the shutter release
Power supply 1 Lithium-ion rechargeable battery, nominal voltage 7.4V, capacity 1100mAh.; maximum charging current/voltage: DC
1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in
camera): 0°C – + 40°C
Charger Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V,
1100mA; Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C – + 35°C
GPS (only with Leica
Visoflex viewfinder
attached, available as an
accessory)
Optional (not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data are written to EXIF header in picture files
Wi-Fi Complies with IEEE 802.11b/g/n standard (standard Wifi protocol), channel 1-11, encryption method: Wifi-compatible
WPA™/WPA2™ encryption, access method: Infrastructure mode
Camera body
MaterialAll-metal die cast magnesium body, synthetic leather covering. Brass top panel and base, black chrome plated finish
Image field selector Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)
Tripod thread A ¼ (¼”) DIN stainless steel in bottom
Operating conditions 0–40 °C
