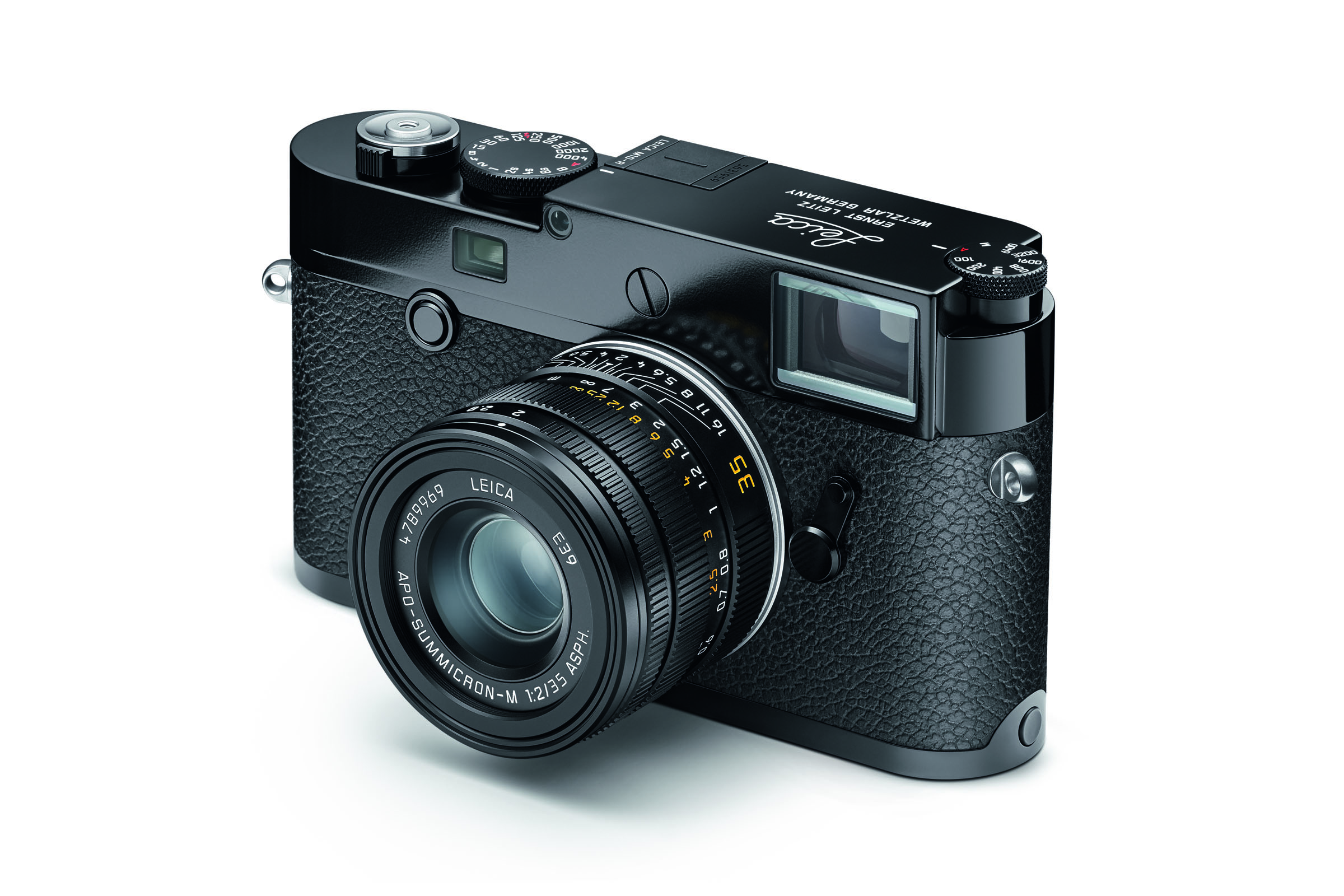

The Leica M10-R is now also available with a black paint finish.

 Wetzlar, June 24, 2021. Leica Camera AG introduces a new design variant of the Leica M10-R. With its black paint finish, the new Leica M10-R perfectly embodies the classic Leica look: over the years, glimpses of brass will gradually start to show on the corners and edges – resulting in a unique patina that emphasizes the camera’s individual character. This is a camera that not only captures moments in time, but also tells a story of its own. The new addition to the M family is a prime example of Leica’s unerring commitment to quality and craftsmanship made in Germany.

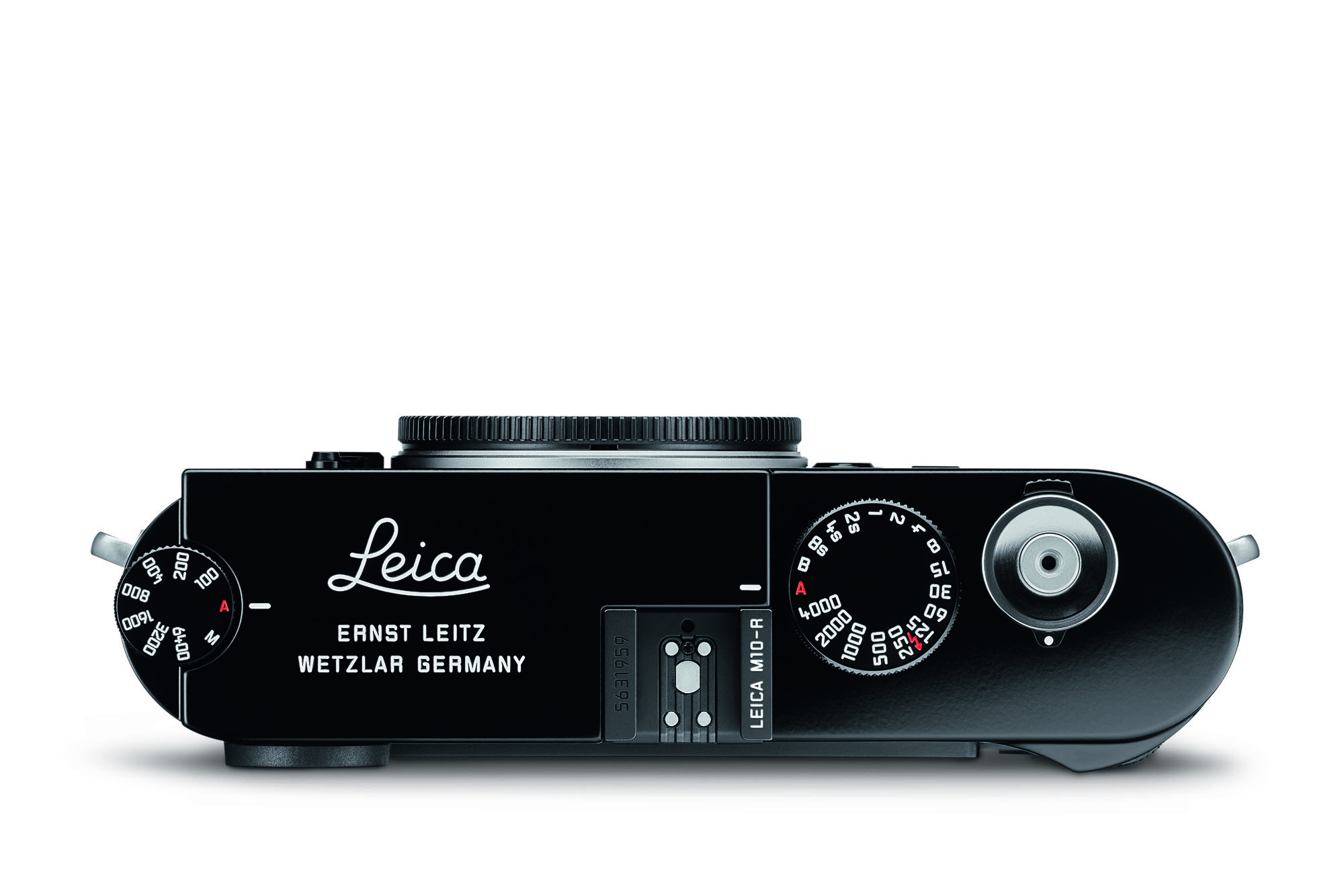

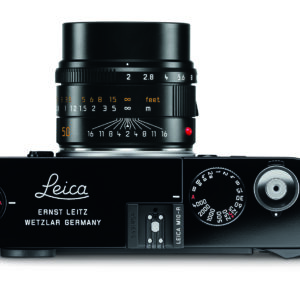

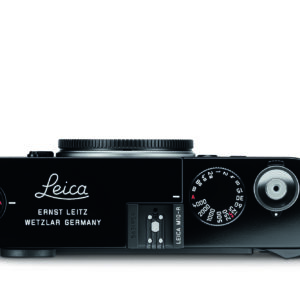

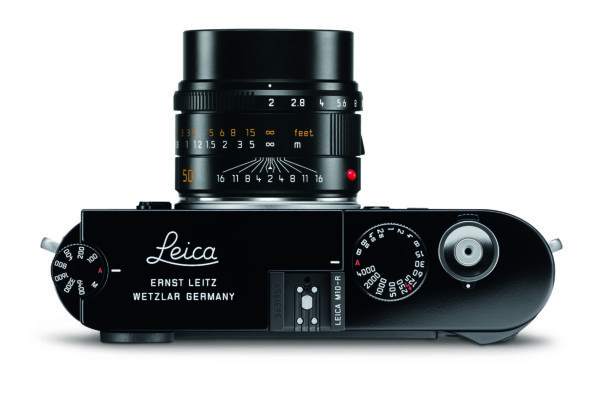

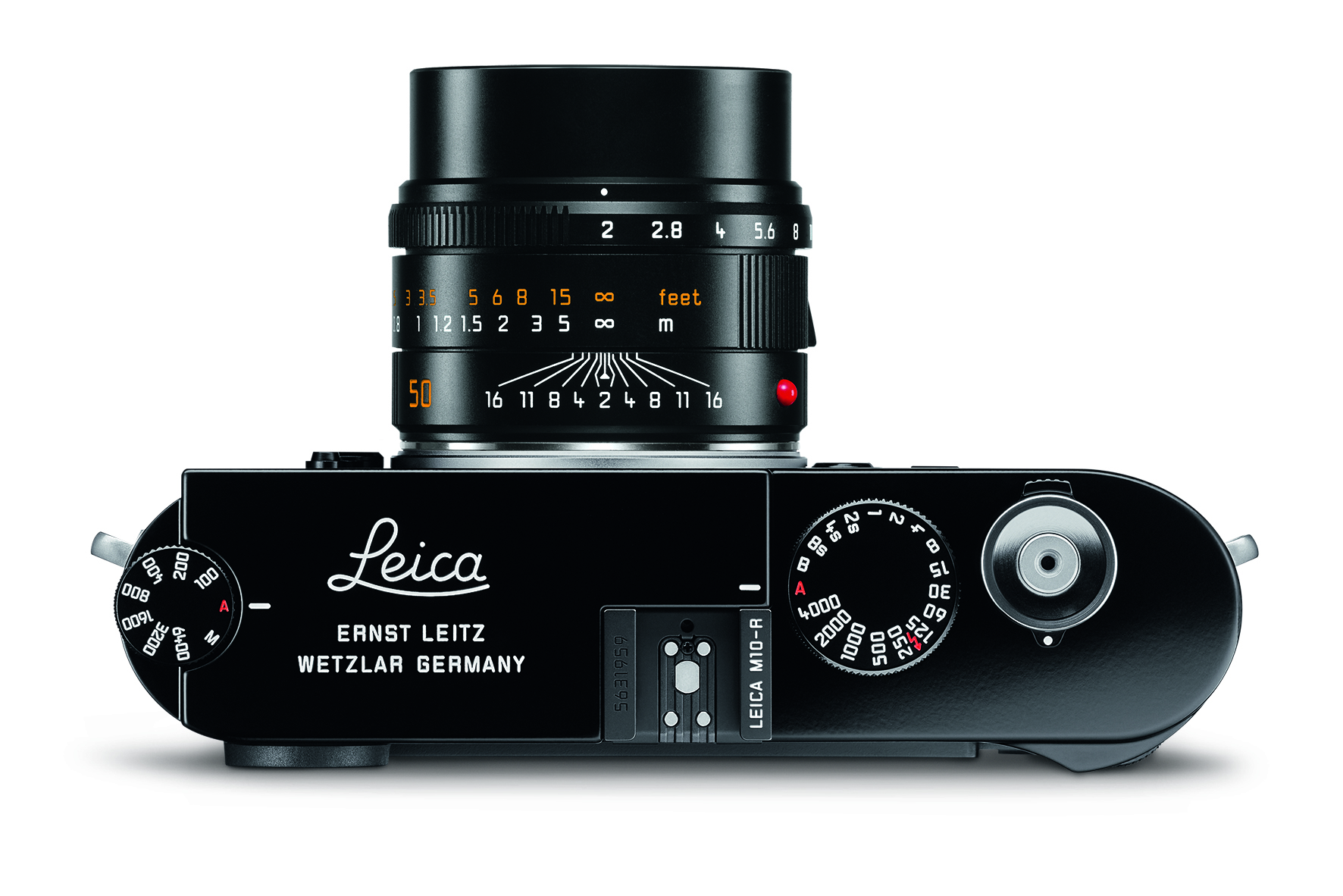

 In addition to the high-gloss finish, there are some external details that distinguish the new design variant from its serially produced counterpart (though the technical specifications are identical in both models). These differences include the classic Leica lettering on the top plate, along with an ‘Ernst Leitz Wetzlar Germany’ engraving. Also, the red Leica dot has been omitted, creating an understated appearance that facilitates an especially unobtrusive approach. As with all Leica M cameras, the new variant is equipped with an ultra-quiet shutter, allowing the photographer to capture scenes at close proximity without drawing undue attention.

Perfectionism down to the last detail is one of the hallmarks of this unusual system camera: the ISO and shutter speed dial both feature classic diamond-pattern knurling, while the shutter button is distinguished by a silver-chrome finish. The Leica M10-R delivers an exceedingly high image quality: with a resolution of over 40 megapixels, the sensor recognizes even the smallest details. This allows the camera to utilize the full potential of Leica’s legendary M lenses.

Reliability over many years of use, combined with high value retention, count among the distinguishing traits of this exceptional camera. They are also a testament to the consistent implementation of Leica’s company philosophy. Throughout the decades of its extraordinary history, Leica has placed a focus on sustainability. For example, by developing the Leica M bayonet back in the 1950s, the company created a timeless lens mount standard; as a result, even vintage lenses from the era of analogue photography can still be used on the new black-paint Leica M10-R today. As ever, Leica’s optical instruments prove to be steadfast companions that are characterized by exceptional quality and longevity.

Weight3.5 kg
Dimensions31 × 22 × 25 cm

Technical Data

Camera type:Leica M10-R, compact digital rangefinder system camera
Lens mount:Leica M bayonet with additional sensor for 6-bit coding
Lens system:Leica M lenses, R lenses can be used with optional adapter
Image Sensor:CMOS chip, active area approx. 24×36 mm, without low-pass filter
Resolution:DNG™: 7864 x 5200 pixels (40,89 MP), JPEG: 7840 x 5184 pixels (40,64 MP), 5472 x 3648 pixels (20 MP), 2976 x 1984 pixels (6MP)
Data Format:DNG (raw data, lossless compression), JPEG
File Size:DNG: 40-60 MB, JPEG (40MP)10-20 MB: Depending on resolution and picture content
Buffer Memory:2GB / 10 pictures in series
White Balance:Automatic, manual, 8 presets, color temperature input
Storage Medium:SD cards up to 2GB, SDHC cards up to 32GB, SDXC cards up to 2TB
Menu Language:German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Exposure Metering:Exposure metering through the lens (TTL), with working aperture
Metering Method:For metering the light reflected by light blades of the 1st shutter curtain onto a measuring cell: Strong center-weighted; for metering on the sensor: Spot, center-weighted, multi-field metering
Metering Range:At room temperature and normal humidity for ISO 200, at aperture 1.0 EV-2 to EV19 at aperture 32. Flashing of the left triangular LED in the viewfi nder indicates values below the metering range
Sensitivity Range:ISO 100 to ISO 50,000
Exposure Modes:Choice of automatic shutter speed control with manual aperture pre-selection – aperture priority A, or manual shutter speed and aperture setting
Flash Exposure Control
Flash Unit Attachment:Via accessory shoe with central and control contacts
Synchronization:Optionally triggered at the 1st or 2nd Shutter curtain
Flash Sync Time:1/180s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS compatible Leica system flash units
Flash Exposure Metering:Using center-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26, SF60), or flash units compatible with the system with SCA3502 M5 adapter
Flash Measurement Cell:2 silicon photo diodes with collection lens on the camera base
Flash Exposure Compensation:±3EV in1⁄3 EV increments
Displays in Flash Mode (in viewfinder only):Using flash symbol LED
Viewfinder
Construction Principle:Large, bright line frame viewfinder with automatic parallax compensation
Eyepiece:Calibrated to -0.5 diopter; corrective lenses from -3 to +3 diopter available
Image Field Limiter:By activating two bright lines each: For 35 and 135mm, for 28 and 90mm, or for 50 and 75mm; automatic switching when lens is attached
Parallax Compensation:The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.
Matching Viewfinder & Actual Image:At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by the corresponding bright line frame and slightly less for shorter distance settings than 2m
Magnification (For all lenses):0.73x
Large-base Range Finder:Split or superimposed image range finder shown as a bright field in the center of the viewfinder image
Effective Metering Basis:50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)
Displays
In the Viewfinder:Four-digit digital display with dots above and below

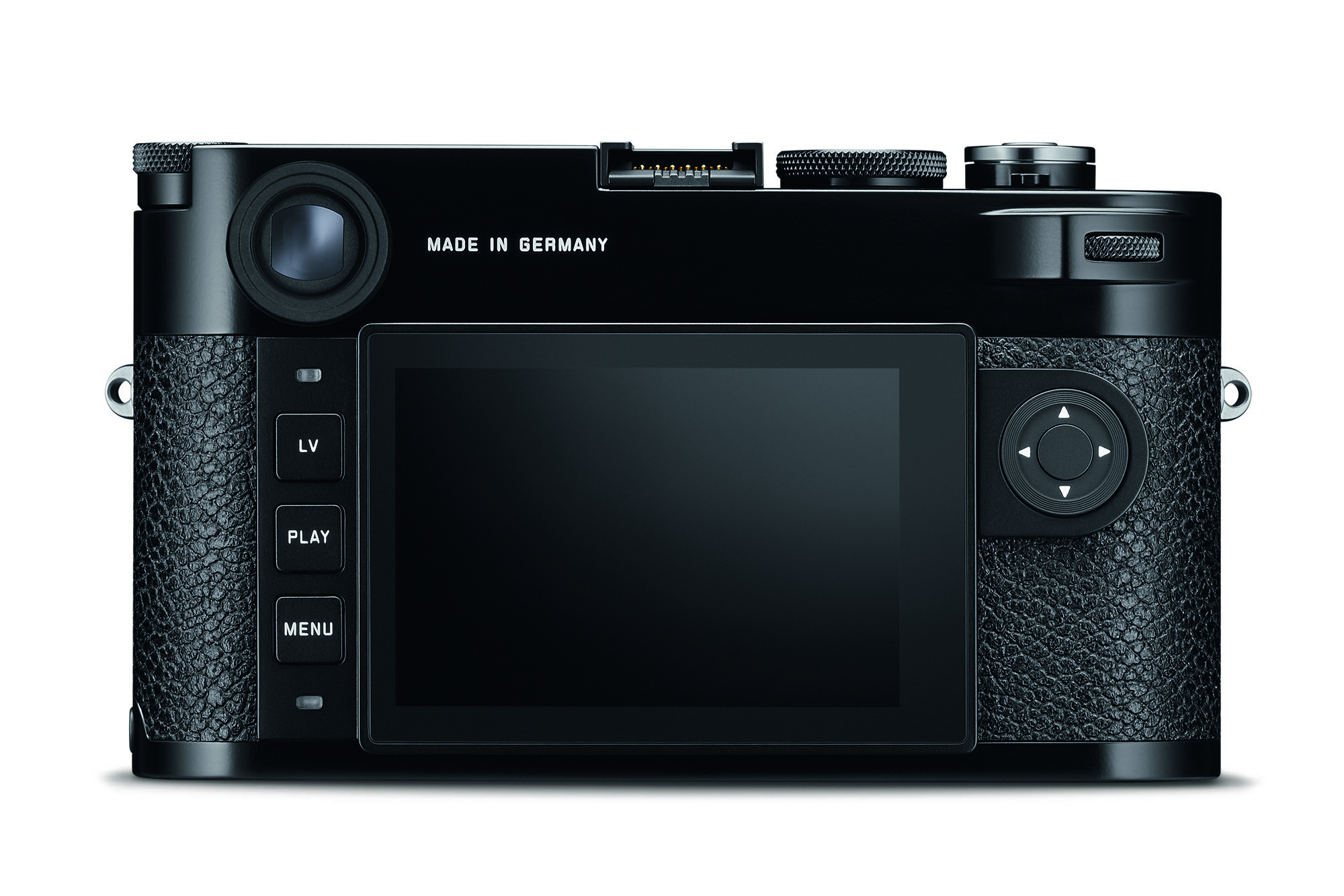

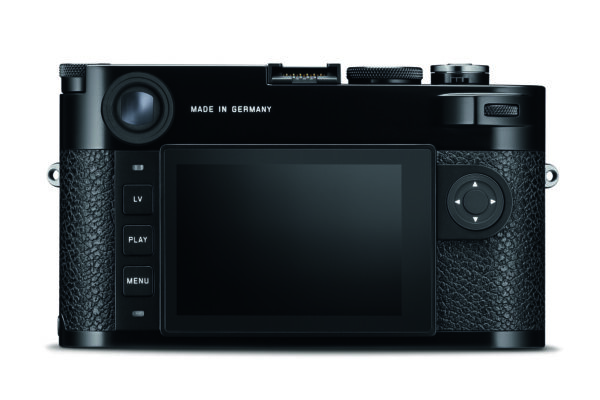

On Back:3” color touchscreen TFT LCD with 16 million colors and 1,036,800 pixels, approx. 100% image field, glass cover of extremely hard, scratch resistant Gorilla glass, color space: sRGB, for Live-View and review mode, displays, level gauge display
Shutter & Shutter Release
Shutter:Metal blade focal plane shutter with vertical movement, near-silent operation
Shutter Speeds:For aperture priority: (A) continuous from 16min to 1⁄4000s., for manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 16min in half steps, B: For long exposures up to maximum 16min (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter closes), (1⁄180s): Fastest shutter speed for flash synchronization, HSS linear flash mode possible with all shutter speeds faster than 1⁄180s (with HSS-compatible Leica system flash units)
Picture Series:Approx. 4.5 pictures/s
Shutter Release Button:Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture priority mode), 2nd step: Shutter release; standard thread for cable release integrated.
Self-Timer:Delay 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front of camera and corresponding display in monitor.
Turning The Camera On/Off:Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes; reactivated by tapping the shutter release
Power Supply:1 lithium ion rechargeable battery, nominal voltage 7.4V, capacity 1300mAh.; maximum charging current/voltage: DC 1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in camera): 0°C – + 40°C
Charger:Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V, 1100mA; Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C – + 35°C
GPS:Only with Leica Visoflex viewfinder attached, available as an accessory
Wi-Fi:Complies with IEEE 802.11b/g/n standard (standard WiFi protocol), channel 1-11, encryption method: WiFi-compatible WPA/WPA2 encryption, access method: Infrastructure mode
Camera Body
Material:All-metal die cast magnesium body, synthetic leather covering. Brass top panel and base, black or silver chrome plated finish
Image Field Selector:Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)
Tripod Thread:A ¼” DIN stainless steel in bottom
Operating Conditions:0-40°C
Interfaces:ISO accessory shoe with additional contacts for Leica Visoflex viewfinder (available as an accessory)
Dimensions:(width x depth x height): approx. 139 x 38.5 x 80mm
Weight:approx. 660g (with battery)
Scope of Delivery:Charger 100-240V with 2 mains cables (Euro, USA,) and 1 car charging cable, lithium ion battery, carrying strap, body bayonet cover, cover for accessory shoe
