Discover More in Black and White:

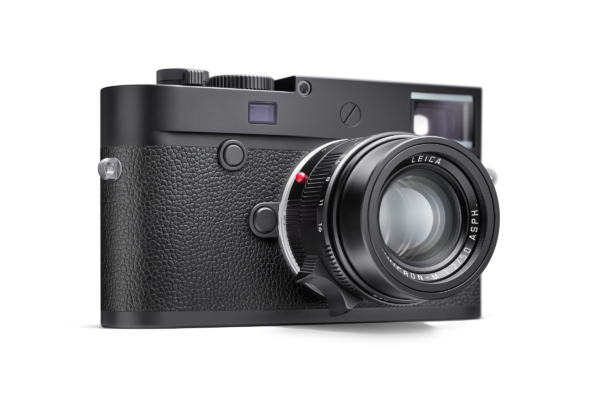

The Leica M10 Monochrom with 40MP

The Leica M10 Monochrom opens the door to a new dimension of black-and-white photography. Equipped with a newly developed image sensor, the camera delivers an extremely high-quality rendition with breathtaking detail resolution. The absence of a color filter array and exceedingly high sensor resolution of 40 megapixels result in an unprecedented depiction of even the finest details, along with an exceptionally natural-looking sharpness.

The new M10 Monochrom and its high-resolution sensor represent an uncompromising commitment to classic black-and-white photography, which has now been elevated to an entirely new level of image quality. No other camera consolidates the most fundamental of all photographic practices — the composition of images using only contrast and light — with a recording quality that can only be achieved with state-of-the-art methods of engineering and construction.

Improved detail rendition for greater image quality

The Leica M10 Monochrom occupies a special place within the M-System: its newly developed image sensor is designed exclusively for gray scale recordings and offers exceptional fine-detail rendition thanks to its exceedingly high, 40-megapixel resolution. The fact that no color filter arrays are required means that there are fewer glass and filter layers to impede the transmission of light or cause deflections. This is especially advantageous in a traditional rangefinder camera, and results in decreased, finer-grained image noise. In addition, the sensor’s enormous sensitivity range of ISO 160 to ISO 100,000 enables recordings with an extremely broad dynamic range – yielding images whose areas of shadow and illumination are clearly defined, particularly when shooting in uneven, high-contrast light.

Understated and discreet for low-profile shooting

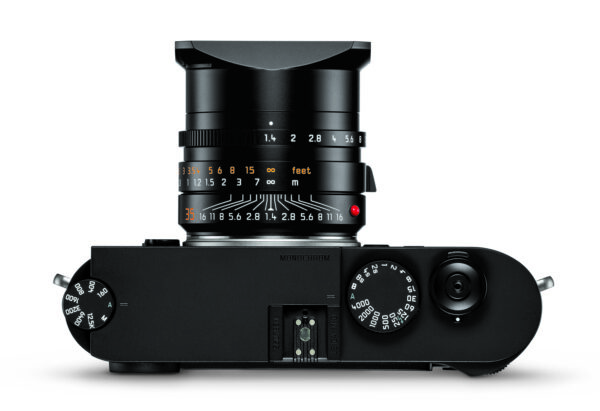

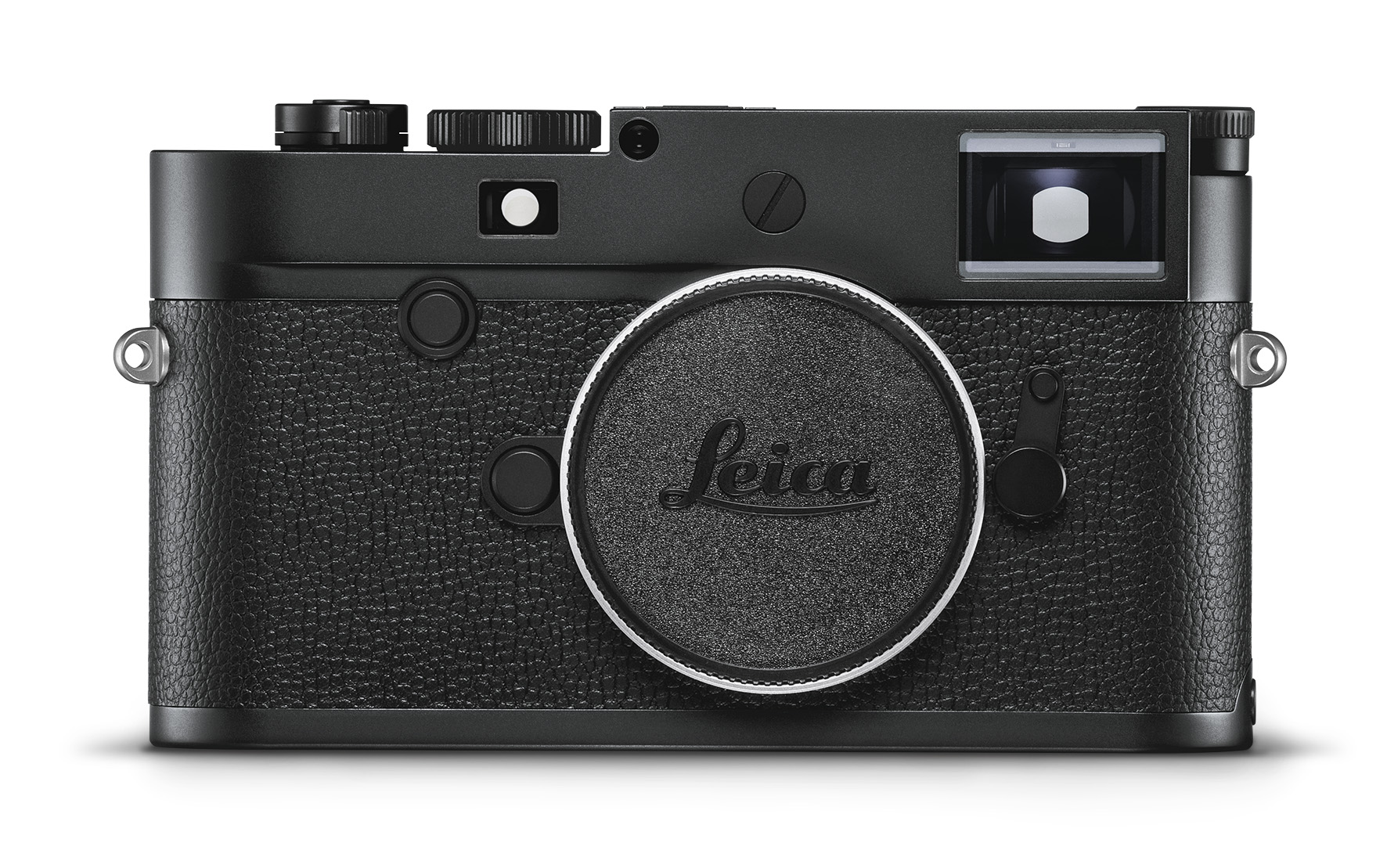

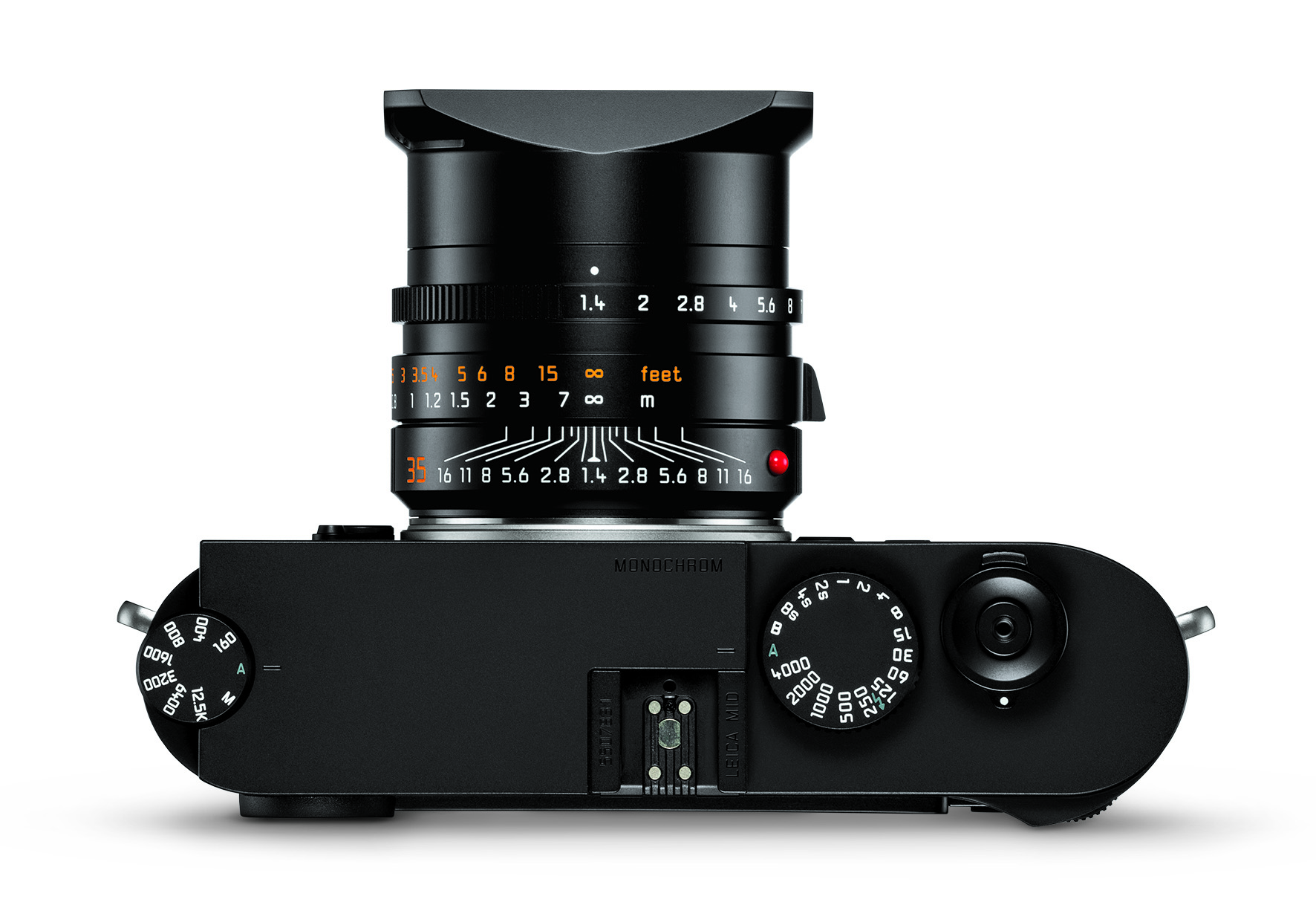

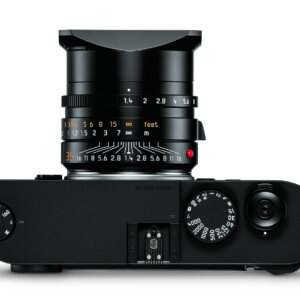

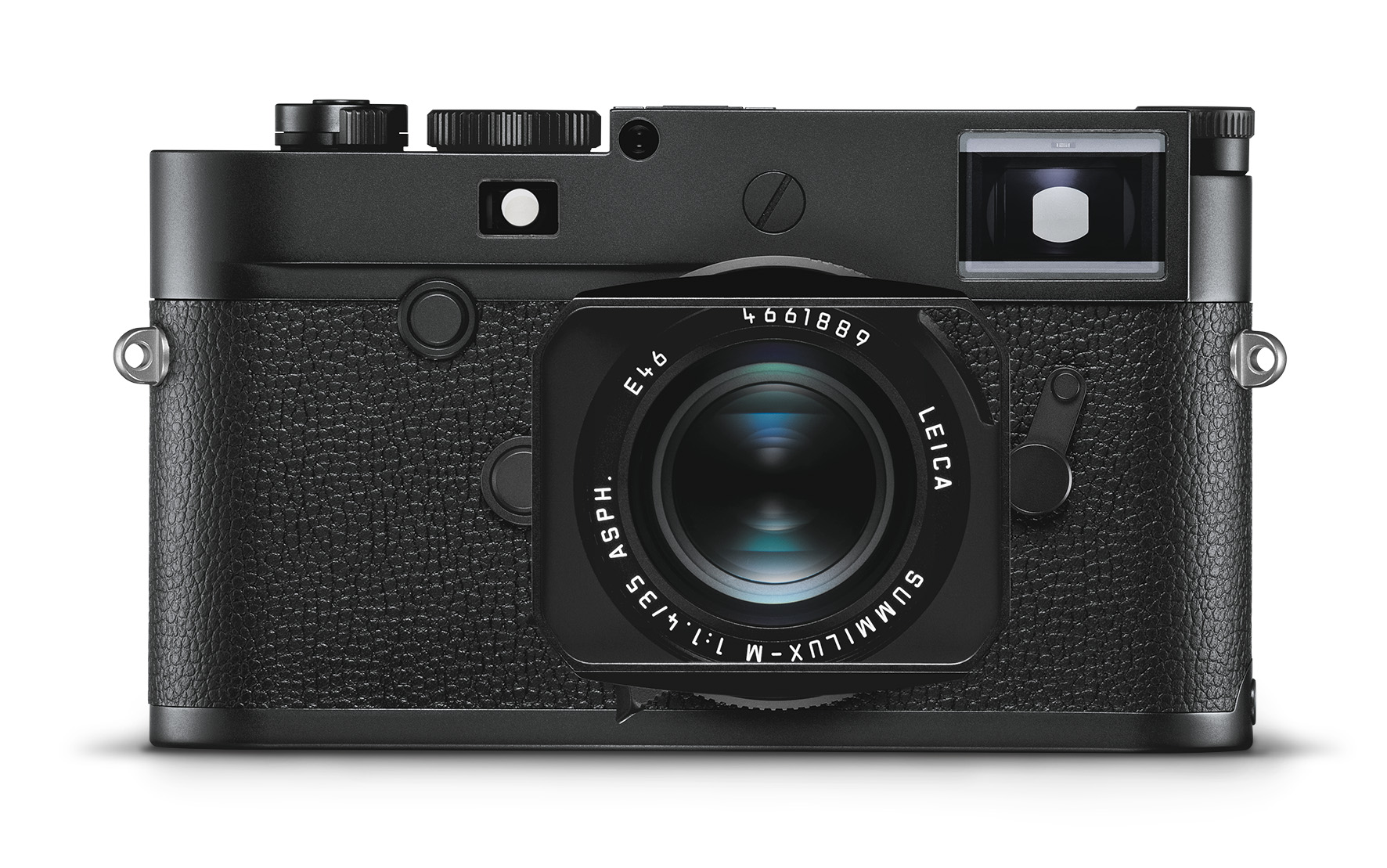

The Leica M10 Monochrom is the epitome of discretion — which is why Leica chose to omit the familiar, and potentially eye-catching, red dot. In a similar vein, the “Leica M10 Monochrom” inscription on the top plate is considerably more subtle. The strict omission of any color-inlaid engravings further emphasizes the camera’s monochrome character. The camera shutter is barely audible, enabling recordings in situations in which other cameras would be too obtrusive. Thanks to its understated appearance, the M10 Monochrom allows photographers to blend into the crowd and capture their subjects without drawing attention.

A reliable companion – Made in Germany

The Leica M10 Monochrom is hand-crafted by accomplished specialists using superior-quality materials and elaborate methods of engineering. For example, the camera’s top and base plates are neither stamped nor molded, but milled from solid blocks of brass. Due to its robust construction, the Leica M10 Monochrom can weather even the toughest external conditions. ‘Made in Germany’ guarantees the utmost quality, reliability and durability, ensuring long-term value and functionality. After all, a Leica is not just a camera, but represents a worthwhile, life-long investment.

Utilizing the full scope of the camera’s capability

With its high-resolution image sensor and faithful detail rendition, the Leica M10 Monochrom has significantly raised the bar in terms of camera quality and performance. This, in turn, means that only equally high-capacity lenses will be able to utilize all of the camera’s performance reserves. Leica’s M lenses — globally recognized as the world’s best full-frame lenses — are the perfect match for the Leica M10 Monochrom, giving rise to an exceptionally high-performance combination.

Weight3.5 kg
Dimensions31 × 22 × 25 cm

Technical Data

Camera:Leica M10 Monochrom
Type no.6376
Order no.20050
Camera TypeCompact digital view and rangefinder system camera with a dedicated black-and-white image sensor
Lens AttachmentLeica M bayonet with additional sensor for 6-bit coding
Lens systemLeica M lenses, Leica R lenses with an optional adapter (available accessory)
SensorB/W CMOS chip, active area approx. 24×36 mm, without color and low-pass filter
ResolutionDNG™: 7864 x 5200 pixels (40,89 MP),
JPEG: 7840 x 5184 pixels (40,64 MP), 5472 x 3648 pixels (20 MP), 2976 x 1984 pixels (6MP)
Data formatsDNG™ (raw data, compressed loss-free), JPEG
File sizeDNG™: 40-60 MB, JPEG (40MP)10-20 MB: Depending on resolution and picture content
Buffer memory2GB / 10 pictures in series
White balanceAutomatic, manual, 8 presets, colour temperature input
Storage mediaSD cards up to 2GB/SDHC cards up to 32GB/SDXC cards up to 2TB
Menu languagesGerman, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Exposure meteringExposure metering through the lens (TTL), with working aperture
Metering methodLight reflected by the blades of the 1 shutter curtain onto measuring cell
Metering rangeAt room temperature and normal humidity for ISO 200, at aperture 1.0 EV-2 to EV19 at aperture 32. Flashing of the left
triangular LED in the viewfinder indicates values below the metering range
Sensitivity rangeISO 160 to ISO 100.000, adjustable in 1/3 ISO increments from ISO 160, choice of automatic control or manual setting
Exposure modesChoice of automatic shutter speed control with manual aperture preselection – aperture priority A, or manual shutter
speed and aperture setting
Flash exposure
control
Flash unit attachmentVia accessory shoe with central and control contacts
SynchronizationOptionally triggered at the 1st or 2nd shutter curtain
Flash sync time= 1/180 s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash
mode with HSS-compatible Leica system flash units
Flash exposure metering Using center-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter
Flash measurement cell 2 silicon photodiodes with a collection lens on the camera base
Flash exposure compensation±3EV in1⁄3EV increments
Displays in flash mode
(in viewfinder only)
Using flash symbol LED
Viewfinder
Construction principle  Large, bright-line frame viewfinder with automatic parallax compensation
EyepieceCalibrated to -0.5 dpt.; corrective lenses from -3 to +3 diopter available
Image field limiter By activating two bright lines each: For 35 and 135mm, or for 28 and 90mm, or for 50 and 75mm; automatic switching
when lens is attached.
Parallax compensation The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the
relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.
Matching viewfinder
and actual image
At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at
infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than
indicated by the corresponding bright-line frame and slightly less for shorter distance settings than 2m
Magnification  (For all lenses) 0.73 x
Long-base rangefinderSplit or superimposed image range finder shown as a bright field in the centre of the viewfinder image
Effective
metering base
50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)
Displays
In the viewfinder  Four-digit digital display with exposure alerts above and below

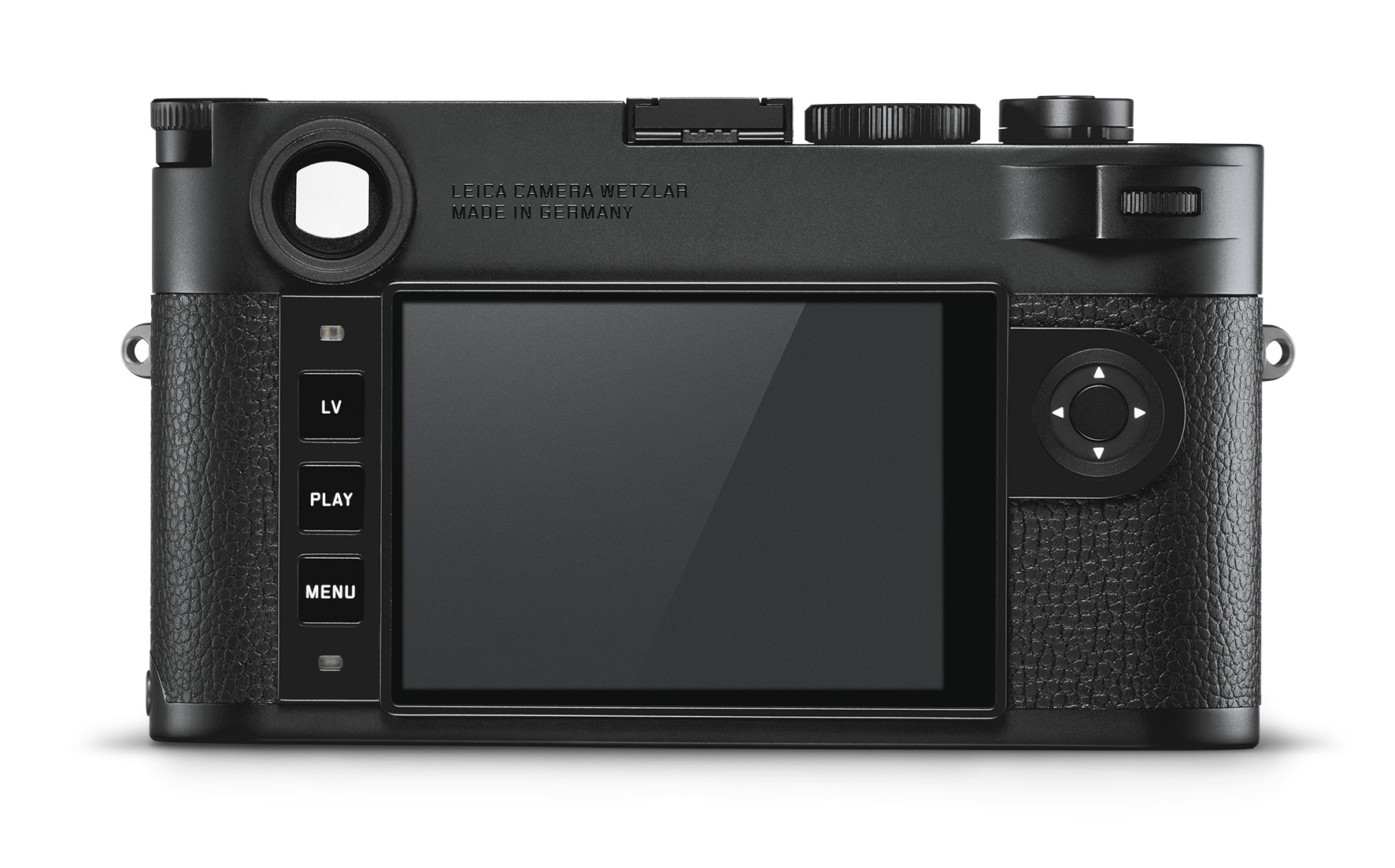

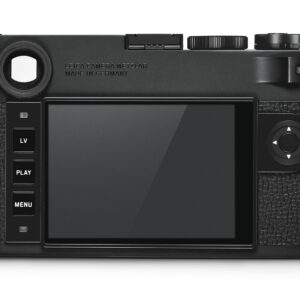

On back On back 3″ colour TFT LCD monitor with 16 million colours and 1,036,800 pixels, approx. 100 % image field, glass cover of extremely hard, scratch-resistant Gorilla® glass, colour space: sRGB, for Live-View and review mode, displays
Shutter and
shutter release
Shutter Metal blade focal plane shutter with vertical movement
Shutter speedsFor aperture priority: (A) continuous from 16min to 1⁄4000s.,
for manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 16min in half steps, B: For long exposures up to maximum
16min (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter closes),
(1⁄180s): Fastest shutter speed for flash synchronization, HSS linear flash mode possible with all shutter speeds faster
than 1⁄180s (with HSS-compatible Leica system flash units)
Picture seriesApprox. 4.5 pictures/s
Shutter release button Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture
priority mode), 2nd step: Shutter release; standard thread for cable release integrated
Self-timerDelay optionally 2s (aperture priority and manual exposure setting) or 12s, set in menu, indicated by flashing LED on front
of camera and corresponding display in monitor.
Turning the camera
on/off
Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes;
reactivated by tapping the shutter release
Power supply 1 Lithium-ion rechargeable battery, nominal voltage 7.4V, capacity 1100mAh.; maximum charging current/voltage: DC
1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in
camera): 0°C – + 40°C
Charger Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V,
1100mA; Model No.: BC-SCL5; Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C – + 35°C
GPS (only with Leica
Visoflex viewfinder
attached, available as an
accessory)
Optional (not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries), data are written to EXIF header in picture files
Wi-Fi Complies with IEEE 802.11b/g/n standard (standard Wifi protocol), channel 1-11, encryption method: Wifi-compatible
WPA™/WPA2™ encryption, access method: Infrastructure mode
Camera body
MaterialAll-metal die cast magnesium body, synthetic leather covering. Brass top panel and base, black chrome plated finish
Image field selector Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail)
Tripod thread A ¼ (¼”) DIN stainless steel in bottom
Operating conditions 0–40 °C
